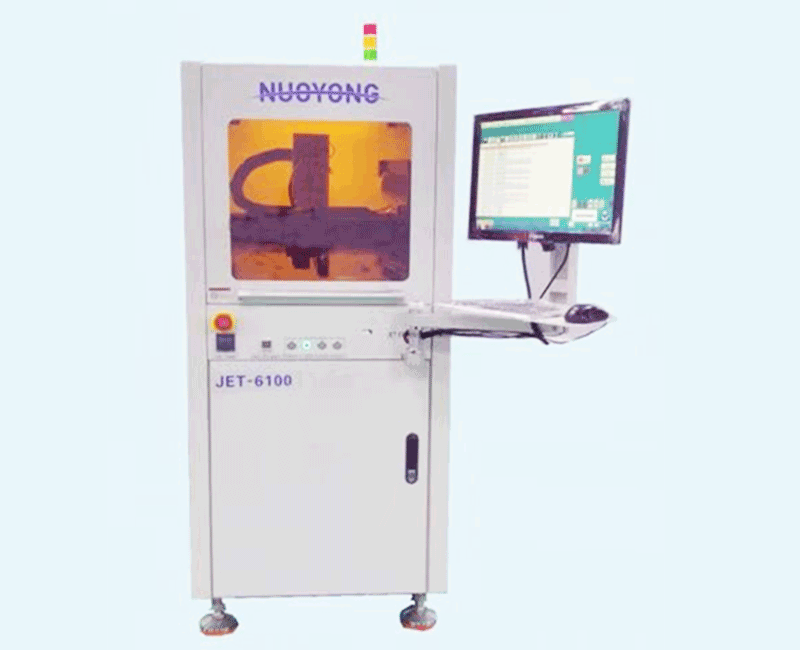

On-line injection - JET6100 dispensing system
Date：2019/2/26
JET6100 is for the electronics industry application and development of intelligent automatic on-line injection dispensing system；
It has advantage of high cost performance, minimalist design, stable and durable, suitable for more specifications of the circuit board. With intuitive；The system software and stable operation of the human. The system is applied to the bottom of the filling, bag sealing, semiconductor chip packaging, FPC packaging products such as glue application, orbit can be adjusted according to the product width, applied to different size of the product.
Details
Technical parameters:
|
Working range |
X=265,Y=300 |
|
Maximum speed |
1000mm/s |
|
Repeat accuracy |
±0.015mm |
|
Working power supply |
AC220V 50/60Hz |
|
Air pressure |
0.6～0.8Mpa |
|
Equipment cover an area of |
W690*D1270*H1530 |
Product features:
* non-contact dispensing technology* high-speed stability, and promote efficiency
* simple human operating system
* high performance and low cost
* AVI dispensing results automatically detect and remind
* height of laser altimeter detection products, prevent scratch products
Application industry:
At the bottom of the underfill filled in
Components coating
Edge of IC packaging
Fingerprint identification module encapsulation
LED lens glue
Some red glue
Configuration options:
monorail
CCD visual system
Sound and light alarm device
Vacuum cleaning equipment
Track automatically adjustable width
The laser altimeter
Low liquid level detection and alarm
Nozzle heating device
